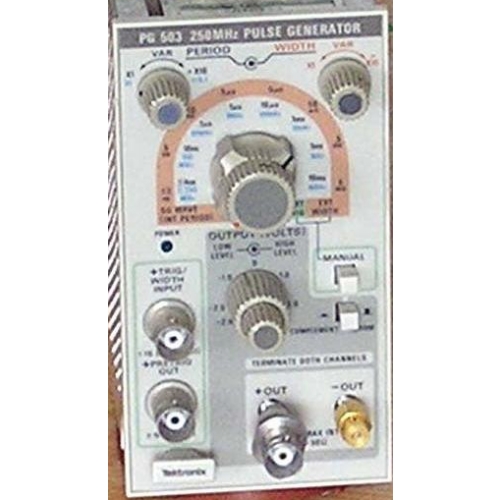

TEKTRONIX PG503 Pulse Generator Module

Wide Range PULSE GENERATOR

Plug In for all TEKTRONIX TM500xx mainframes

Pulse Period:                    < 100 Hz to > 250 MHz and variable  from   x 1to  x10
Pulse Width:                         from 5 ms to < 2 nanosec .......and variable from x1 to x10
Main Pulse  outputs:         SMA  50 Ohms +OUT and -OUT  ( +2,5V to-2,5Vpk/pk ) Adapter to BNC and 50Ohm SMA Termination included
Sweep Mode:                      Start / Stop Frequency selectable over full range.....sweep duration from 0,1ms to 10 s

250pS transition time
