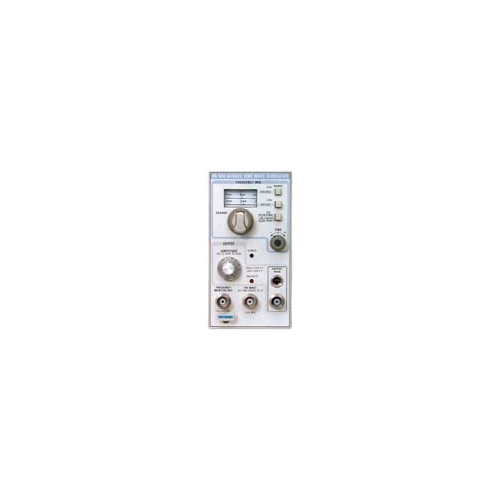

Tektronix SG504 Leveled Sine-Wave Generator

The SG504 Leveled Sinewave Generator provides a bandwidths of 250MHz to 1GHz and leveled output amplitude from 245 to 1050MHz in two bands. Calibrated output voltage is variable from 0.5 V to at least 4.0 V p-p into 50 ohms. Flatness of ?4% of amplitude at reference frequency.
Manufacturer's
Standard Accessories

Instruction Manual
Leveling Head
