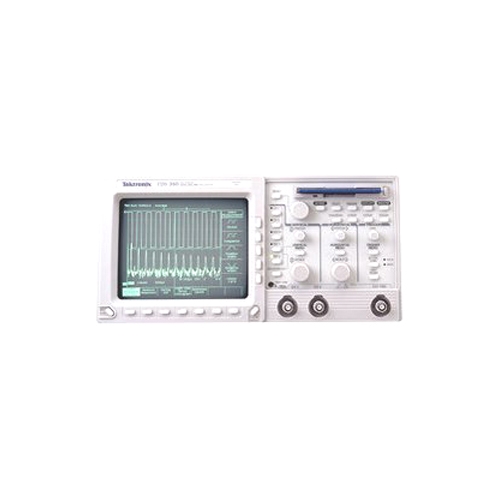

Tektronix TDS360 Digital Oscilloscope

Tektronix TDS360 Digital Oscilloscope
Tektronix logo

Tektronix TDS360 Digital Oscilloscope

Capture real-time signals on each and every sweep with the new TDS360 Digital Real Time Oscilloscope ? with twice the bandwidth and twice the sample rate of previous TDS360 models. All models come with Fast Fourier Transform (FFT) to display harmonic content of waveforms. In addition, the TDS360 comes with a built-in floppy disk drive for simplified PC compatability. These digital scopes will meet your needs in all areas: education, product design, manufacturing, service and troubleshooting. Key applications include troubleshooting and verification of electronic circuitry, electronic products testing, installation, repair and performance of electronics products. Single-shot capture to full bandwidth Enhanced measurement efficiency Efficient analysis of harmonics with FFT mode High-speed sampling that minimizes aliasing Desktop publishing of test reports Import waveform values into spreadsheet for analysis Bandwidth: 200 MHz Channels: 2 Max Sample Rate: 1 GS/s/channel Sweep Speeds: 2.5 ns/div - 5 s/div Vertical Sensitivity: 2 mV - 10 V Vertical Resolution: 8 Bits Record Length: 1 K/channel Standard Advanced Features: FFT, TV Line & Field Trigger, Roll Mode, Autoset, 21 Automatic Measurements, Peak Detect, Floppy Disk Drive
