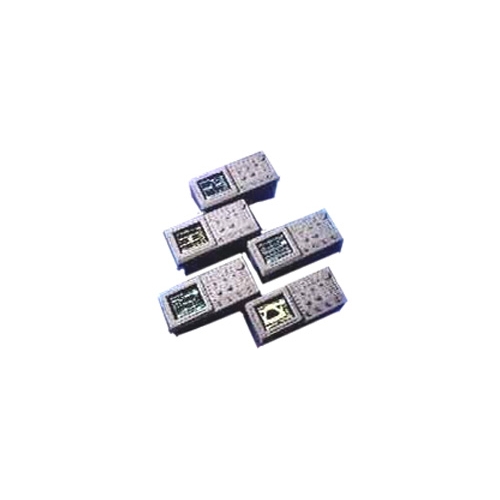

TEKTRONIX TDS540B Digitizing Oscilloscope

Tektronix TDS540B Oscilloscope, Digital: 500MHz,2GSa/s,4ch (Stand alone)

The Tektronix TDS540B oscilloscope is a graph-displaying device ?it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis

The TDS series are built upon the digitizing oscilloscope platform, featuring multi-processor speed and flexibility, advanced acquisition and triggering capabilities and a unique graphical user interface for intuitive operation.

The TDS Series combines the performance needed with the ease of use demanded by customers in digital design; research and development; electromechanical design; high speed component development and characterisation; and telecommunications design and automated test.

Features:

  • Sample rate of 2 GS/s
  • Bandwidth of 500 MHz
  • Four channels has a 50 K record length
  • Sensitivity of 1mV to 10V
