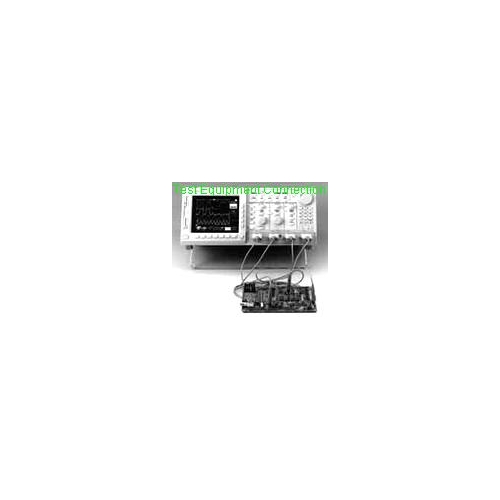

Tektronix TDS620 Digital Oscilloscope, 500 MHz, 2GSa/s, 2 Channel

Your designs may be digital but at today's speeds, many of your toughest problems aren't. Crosstalk noise. Transmission effects. Ground bounce. Not to mention sub-nanosecond edges. Today's design problems require high bandwidth oscilloscopes that can measure up to these challenges. The Digital Real-TimeTM architecture of the TDS620B Digital Real Time Oscilloscope simplifies capturing of intermittent signals or non-recurring problems like glitches or metastable states caused by setup and hold time violations. The TDS620B provides design engineers with excellent single shot accuracy for multi-channel, high speed signal characterisation. Bandwidth: 500MHz Sample Rate: 2.5 GS/s 2 Channels 8-Bit Vertical Resolution; Greater than 11-Bits with Averaging Record Length: 15,000 Points 1 mV/div to 10 V/div Sensitivity 1.5% Vertical Accuracy Waveform Math and Advanced Waveform DSP 1 ns Peak Detect Channel Deskew Fully Automated Measurement System Waveform Pass/Fail Template Testing Color VGA Display 3.5 in. DOS Format Floppy Drive RS-232, Centronics, GPIB and VGA I/O Ports Manufacturer's Standard Accessories 500MHz Passive Voltage Probe (2) User Manual Programmer's Manual in MS-Help format on floppy disk Technical Reference Manual Quick Reference Quide U.S. Power Cord Front Cover Manufacturer's Options Option 05 = Video Trigger, NTSC, PAL, HDTV, FlexFormat? Option 1K = Model K420 Instrument Cart Option 1R = Rackmount Kit Option 2D = Delete Standard
