Tektronix TDS684A Digital Oscilloscope, 1 GHz

Tektronix TDS684A Digital Oscilloscope, 1 GHz
Tektronix logo

Tektronix TDS684A Digital Oscilloscope, 1 GHz

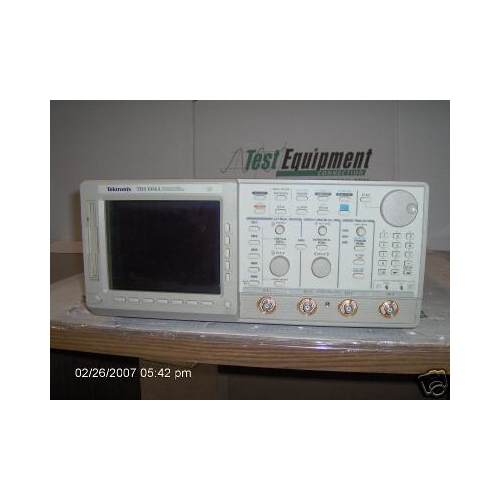

Tektronix TDS684A Oscilloscope, Digital: 1GHz,5GSa/s,4ch (Stand alone) The Tektronix TDS684A oscilloscope is a graph-displaying device ? it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis. The Tektronix TDS684A oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the ?moving parts? of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time. * Auto Scale * Advanced Math * Floppy Drive
