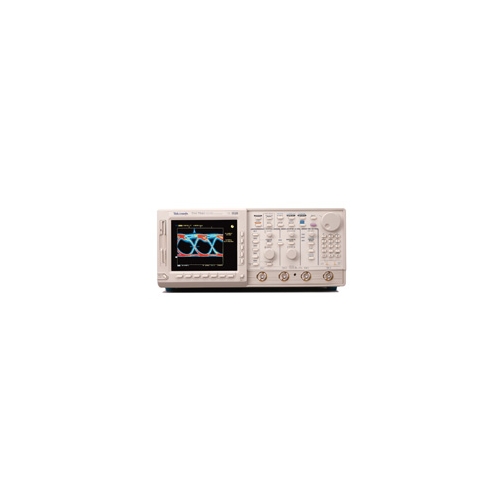

Tektronix TDS794D 4 Channel 1 GHz Digital Oscilloscope

The TDS700D oscilloscopes are Digital Phosphor Oscilloscopes (DPOs) designed to keep pace with needs in advanced electronic design and debug. DPOs deliver a level of insight that makes dealing with complex signals elementary. DPOs capture, store, display and analyse, in real time, three dimensions of signal information: amplitude, time and distribution of amplitude over time. The benefit of the third dimension of information is an interpretation of the signal dynamics, including instantaneous changes and the frequency of occurrence displayed in the form of quantitative intensity information. Extensive user interface design made the TDS family of products intuitive to operate. Each family member shares a familiar front panel layout with dedicated vertical, horizontal and trigger controls. A graphical user interface with over 200 icons helps facilitate understanding and use of the advanced features. A color monitor helps rapidly distinguish between multiple waveforms and measurements. Online help provides a convenient built-in reference manual.
