Tektronix TSG11 PAL Signal Generator

Tektronix TSG11 PAL Signal Generator
Tektronix logo

Tektronix TSG11 PAL Signal Generator

The TSG11 Color Bar Generator Plug-in provides high-quality full field and split field color bars for the 1411 PAL Generator Mainframe. The unit operates independently from any other test signal installed in the mainframe with generator card sets. Its output is available simultaneously with all other test signal outputs. One of the sync pulse generators must be installed in the mainframe to drive the TSG11. The unit provides the following Color Bar Signals: Fixed Full Field Full Field with switchable components 75% or 100% amplitude Split field/Y reference Split field/Red Split field bars/bars reversed

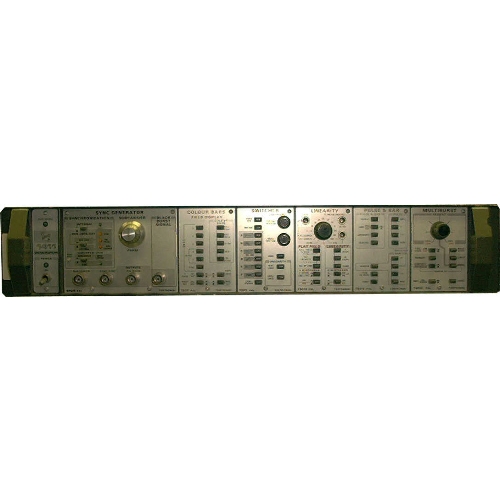

[Tektronix_TSG11]
