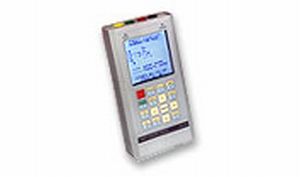

VIAVI EFL-10 Fault Locator Bridge (W&G)

The EFL-10 Fault Locator Bridge is a microprocessor-controlled cable measuring instrument intended for fast and accurate fault location and quality testing of telecommunication cables. The EFL-10 is the smallest, most intelligent, and accurate handheld in the world for measuring a large variety of cable parameters.

Highlights

• Quick troubleshooting procedures.
• Fast pinpointing of cable fault location.
• Verification of line specifications.
• Capable of data transfer to a PC to prepare an acceptance test protocol.

Applications

• Comprehensive test and maintenance of long telecommunication cables.
• Cable installation, acceptance test and protocol of loop resistance, resistence difference, and insulation resistance.
• Acceptance testing, pass/fail testing of large cable rolls (including a consecutive test of all pairs in a braided cable), verifying and documenting cable specifications.

Key Features

• Location of insulation and conductance faults, including leakage, breaks, and simple or double splits.
• Measurement of cable parameters, including loop resistance, resistance difference, insulation resistance, capacitance, temperature by external test probe, and disturbing AC/DC voltages.
• DMM function.
• Simple, menu-controlled operation.
• Results can be transferred to a printer or PC via an RS-232C.
• Instrument software updates via an RS-232C.
• Rechargeable battery pack.
