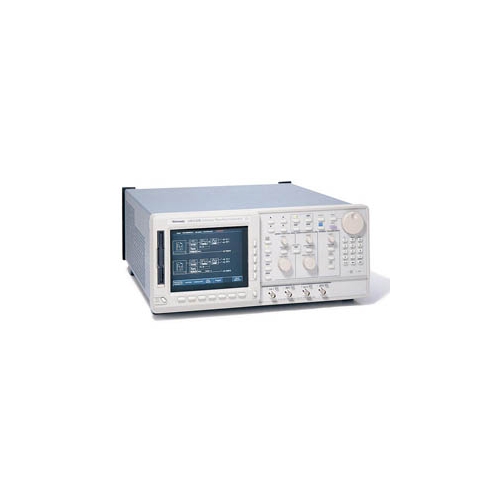

Tektronix AWG420 200 MS/s, 16-Bit Two Channel Arbitrary Waveform Generator

Tektronix AG420 Arbitrary Waveform Generator

Tek AWG400 Series:

• 2 or 3 Independent Waveform Channels
• 16-Bit Vertical Resolution
• 200 MS/s Sample Rate
• Up to 16 M Point Record Length
• Optional 32/48-Bit 100 MHz (CMOS) Digital Data Generator for Mixed-signal Device Testing
• 4 or 6 Digital Marker Outputs
• Independent Channel Internal Noise Generator
• Independent Channel Skew Control
• Independent Channel External Signal ADD-INPUT
• External Clock and External Reference Inputs

Applications

Designing, Testing and Deploying:

• Quadrature Digitally Modulated I&Q Signals and Displays
• Mixed (Analog/Digital) Signals
• Stimulus Signals for Imaging Display and Recording Devices (CCD, LCD)
• Enhanced/Corrupted Playback of DSO Captured Signals
• Simulation Waveform Vectors Imported from Mathcad, Matlab, Excel and others

Network Communications Physical Layer Testing:

• ITU-T (E1, E2, E3)
• TI.102 (DS1, DS1A, DS1C)
• Fibre Channel (FCI33E)
• SDH/SONET (OC1/STM0, OC3/STM1)
• D2
• 100Base-TX

The Tektronix AWG400 Series performs a wide range of modulated (I&Q) and mixed signal simulations (analog & digital) for wireless and wired data communication, in addition to semiconductor device characterisation. The AWG400 is ideal for design or manufacturing test engineers who need to replicate marginal and erroneous analog and mixed signal conditions. The only product in its class offering 200 MS/s, 16-Bit vertical resolution, 2 or 3 channel configurations and optional digital outputs (32 or 48). The AWG400 is a superior choice for those who need an additional channel, longer memory or higher vertical resolution. The color display, graphical user interface and stand-alone Microsoft Windows-based waveform creating utility (ARB-Link) supports quick creation, editing and output of custom or imported waveforms.
