Tektronix P6703B 1100 to 1650 nm Optical-to-Electrical Converters

Tektronix P6703B 1100 to 1650 nm Optical-to-Electrical Converters
Tektronix logo

Tektronix P6703B 1100 to 1650 nm Optical-to-Electrical Converters

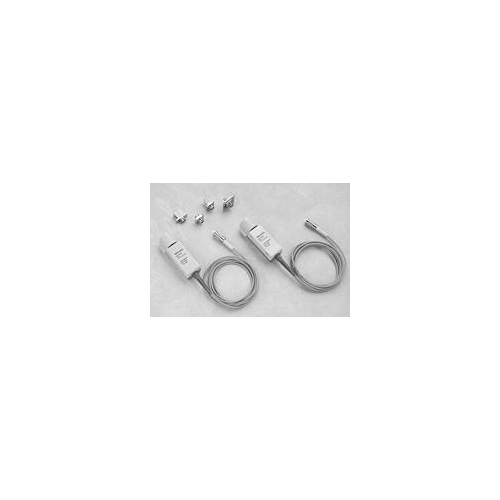

The Tektronix P6700 Series optical-to-electrical (O/E) converters change optical signals into electrical signals for convenient analysis on Tektronix TDS7000/5000/3000/500/600/700 Series oscilloscopes equipped with the TEKPROBE interface, or any other oscilloscope when used with the 1103 TEKPROBE power supply. The P6700 Series O/E converters are ideal for optical source characterisation in the development, manufacture or service of optical communication systems and devices. Small, conveniently packaged P6703B optical-to-electrical analog converters provide an accurate interface for optical pulse shape measurements. The high gain, large dynamic range and stable output offset of these O/E converters make them ideal for performing eye-pattern analysis and extinction measurements. The P6701B/P6703B optical input is a one meter, 62.5-micron multimode fiber with an FC/PC connector. Using the standard assortment of hybrid fiber optic mating sleeves, these O/Es can accommodate the various industry connector standards. The TEKPROBE interface provides power, auto-scaling, auto-termination and correct units (microwatts) when used with Tektronix TDS500/600/700 Series oscilloscopes.
[TEK_P6703B]
