Tektronix TLA613 102 Channel 100 MHz State, 2 GHz Timing Logic Analyser

102 Channel, 2 GHz Timing, 100 MHz State, 64K Depth Logic Analyser

The TLA613 logic analysers feature front-panel controls, an integral display and support an external display simultaneously.

Hardware developers appreciate the TLA600 Series logic analysers' range of capabilities. Their broad feature set includes capturing and correlating elusive hardware faults by triggering on glitches and setup/hold violations; providing simultaneous state and high-speed timing analysis; and using state acquisition to find the cause of complex problems. Productivity and connectivity features, such as the open Microsoft Windows 2000 Professional PC platform, make the TLA600 Series logic analysers easy to use and easy to network into the design environment.

All Tektronix TLA logic analysers share the same TLA application software so that if you learn one, you can use them all. You can also share setups and data between them as well as display data on Windows PCs with the free TLAVu Offline Data Viewer.

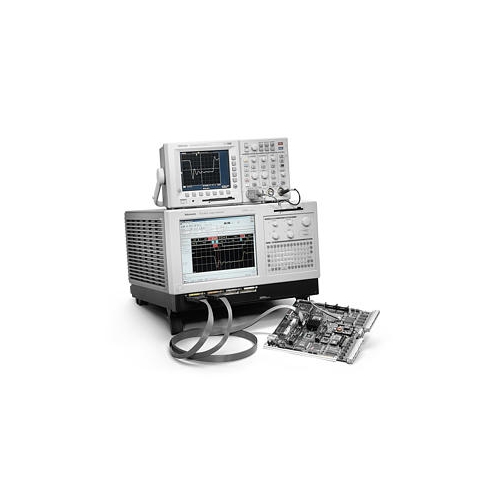

Oscilloscope shown (top unit), not included.
